AB 1746-IG16 Input Module – Digital Input Control

In stock

The AB 1746-IG16 Input Module is a high-performance device designed for industrial control systems. It efficiently converts analog signals to digital inputs, providing precise data for system operation and monitoring.

Module Type:Digital Input

Number of Inputs:16

Input Voltage Range:10-30VDC

Input Current Range:-30 to 30mA

Backplane Current Draw:35mA at 5V, 85mA at 24V

Isolation Voltage:500VDC

Operating Temperature Range:-40°C to +70°C

Enclosure Type:IP20 Open Type

Power Consumption:Less than 1W

The Allen Bradley 1746-IG16 Input Module is engineered for robust industrial environments, featuring an open-type enclosure for maximum air circulation and easy access to connectors.

Each of its 16 channels is equipped with high-resolution analog-to-digital conversion, ensuring accurate signal capture even under varying environmental conditions.

With an operating temperature range from -40°C to +70°C, this module can withstand extreme environments, making it suitable for applications in harsh industrial settings.

Featuring a wide common mode voltage range (-20 to +20 V) and absolute input voltage (+/- 7.5 VDC or 7.5 VAC RMS), the 1746-IG16 ensures compatibility with diverse sensor outputs.

The integrated overvoltage protection feature safeguards against electrical spikes and surges, enhancing system reliability and reducing maintenance costs.

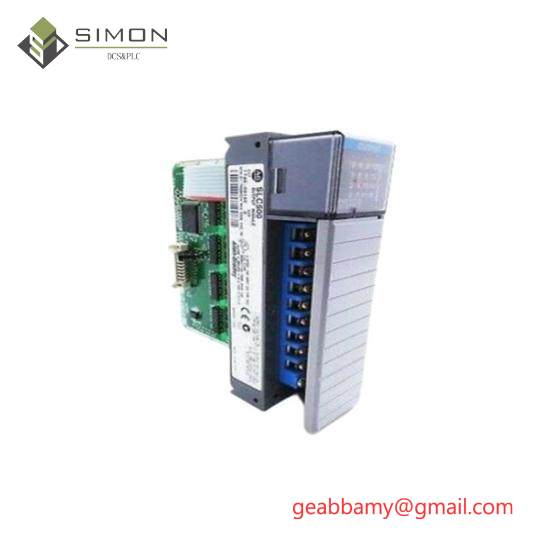

1746-IG16 Input Module
