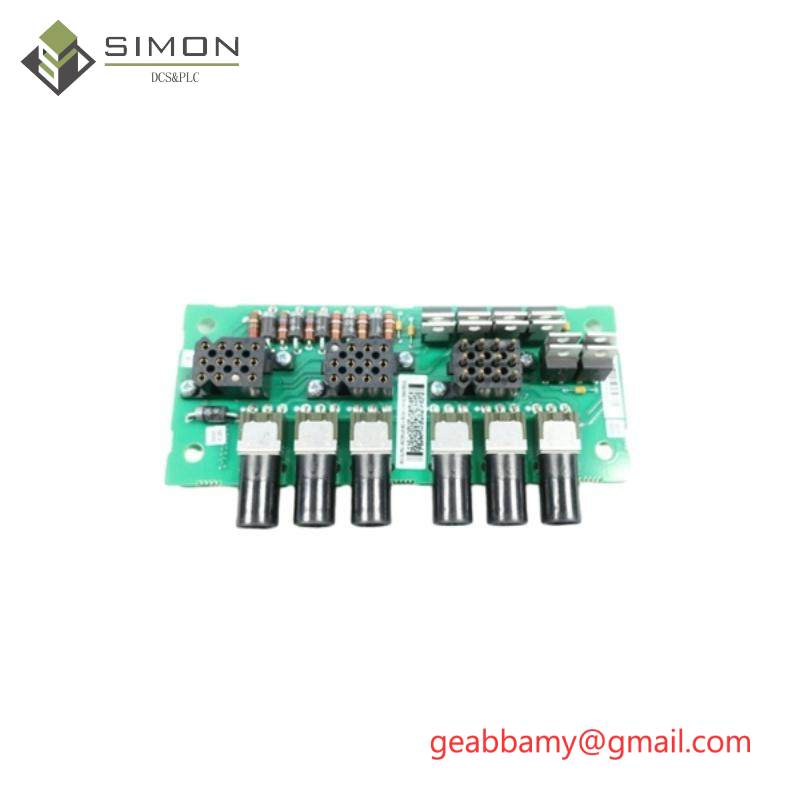

ABB DSQC563 – 3HAC16035-1 Brake Release Board

Manufacturer:ABB

Model Number:DSQC563

Part Number:3HAC16035-1

Type:Brake Release Module

Module Class:PLC

Operating Voltage:DC 24V

Current Rating:1.5A

Switching Capacity:10A

Number of Channels:4

Communication Interface:RS-485

Dimensions (WxHxD):90mm x 51mm x 28mm

Weight:0.05kg

Temperature Range:-20°C to +60°C

Operating Conditions:Indoor industrial use

    The ABB DSQC563 – 3HAC16035-1 Brake Release Board is engineered with precision and reliability, offering seamless integration into a wide range of industrial automation setups.

    Featuring a robust relay output, this board ensures quick and accurate activation and deactivation of brakes, enhancing operational safety and efficiency.

    Designed with a compact footprint and lightweight construction, the DSQC563 is easy to install and maintain, making it suitable for space-constrained environments.

    With support for EtherCAT communication protocol, the board facilitates fast data transfer and synchronization, optimizing system performance and reducing downtime.

    Certified to stringent international standards, including IEC 61131-3 and EN 50178, the DSQC563 ensures compliance with industry regulations and best practices.

    Ideal for applications in manufacturing, robotics, and material handling, the ABB DSQC563 – 3HAC16035-1 Brake Release Board offers a reliable solution for critical braking systems, enabling smoother operations and enhanced productivity.
